Second –hand 3200-100TPD Corrugated Paper Machine

1.       Trimmed width: 3200mm

2.       Production: 100TPD

3.       Wire section: wire table length 16m, stainless steel inserted ceramic panel; suction couch roll with diameter 800mm.

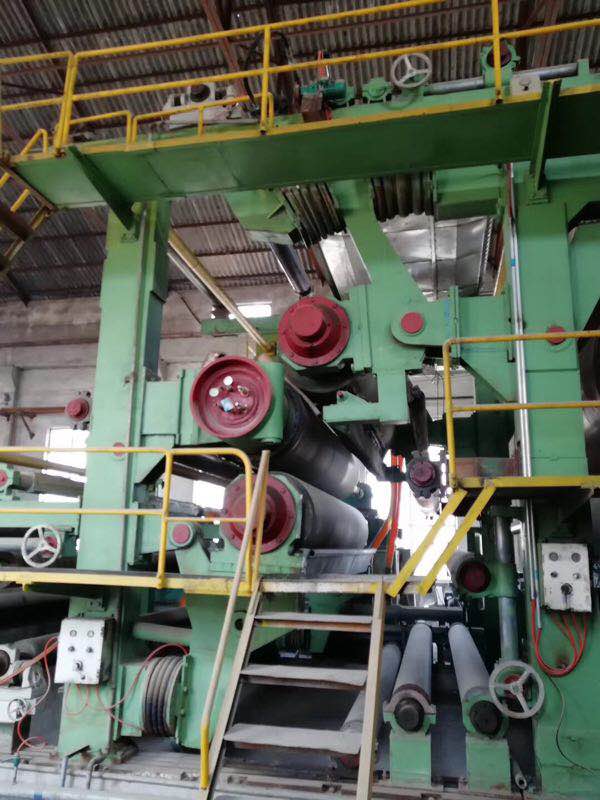

4.       Press section: K type press with one ∅700mm press roll covering rubber, one ∅750mm suction press roll and one ∅800mm stone roll + ∅1250mm jumbo press

5.       Dryer section: dryer dimension： ∅1500mm x3700mm×4300mm, arrangement: 16 pre dryers + sizing machine + 8 dryers

6.       Sizing machine: sizing roll diameter 800mm

7.       Pope reel

8.       Rewinder

9.       Drive section: gear drive, with motor and reducer; without frequency conversion.
