Paper Grade: Writing and printing paper

Working Speed: 600m/min

Production: 200T/D

Wire Section: air-cushion headbox + suction return roll diameter 800mm + suction couch roll diameter 1000mm + top former; wire table covering stainless steel, Wire table length is 15 meter, whole scraper dewatering box.

Press Section: one main press, blind roll and stone roll diameter are both 1000mm + suction press, roll diameter 1000mm.

Dryer Section: 50 dryer cylinders, whose diameter is 1500mm, work face is 5760mm, sole plate center distance is 6900mm.

Pope reeel

Rewinder made by DOMIKION

Others: closed gear box; sectional drive; motor; two layers arrangement; have no frequency conversion and electric control.

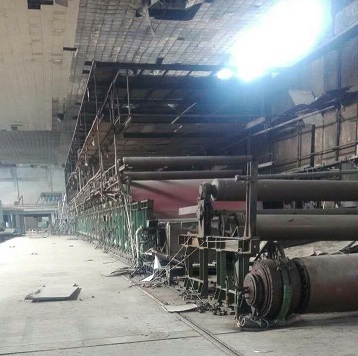

This paper machine produced by Canada manufacturer.
