3200 Cylinder Corn Paper Making Machine

3200 Cylinder Corn Paper Making Machine

① Returning Section:suction return roll -850mm*800mm

                                  squeeze roll-550mm*500mm

②Wire Section:7 mould cylinder

                          wire roll -diameter1500mm

                          couch roll-diameter 600mm

③Press Section: first  suction press roll -850mm*800mm

                           second pope roll -1250mm*1250mm

                           third pope roll-diameter 1250mm

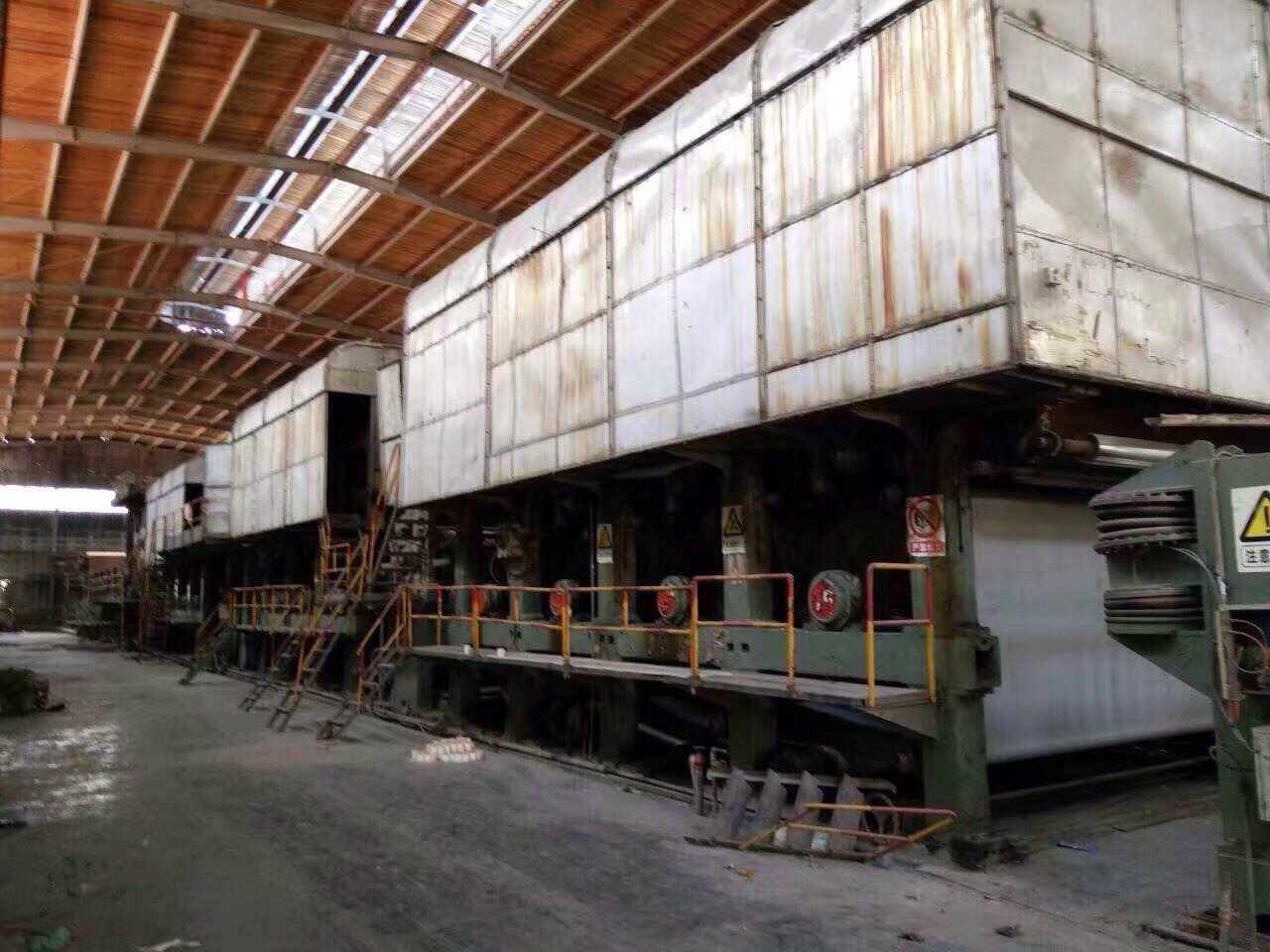

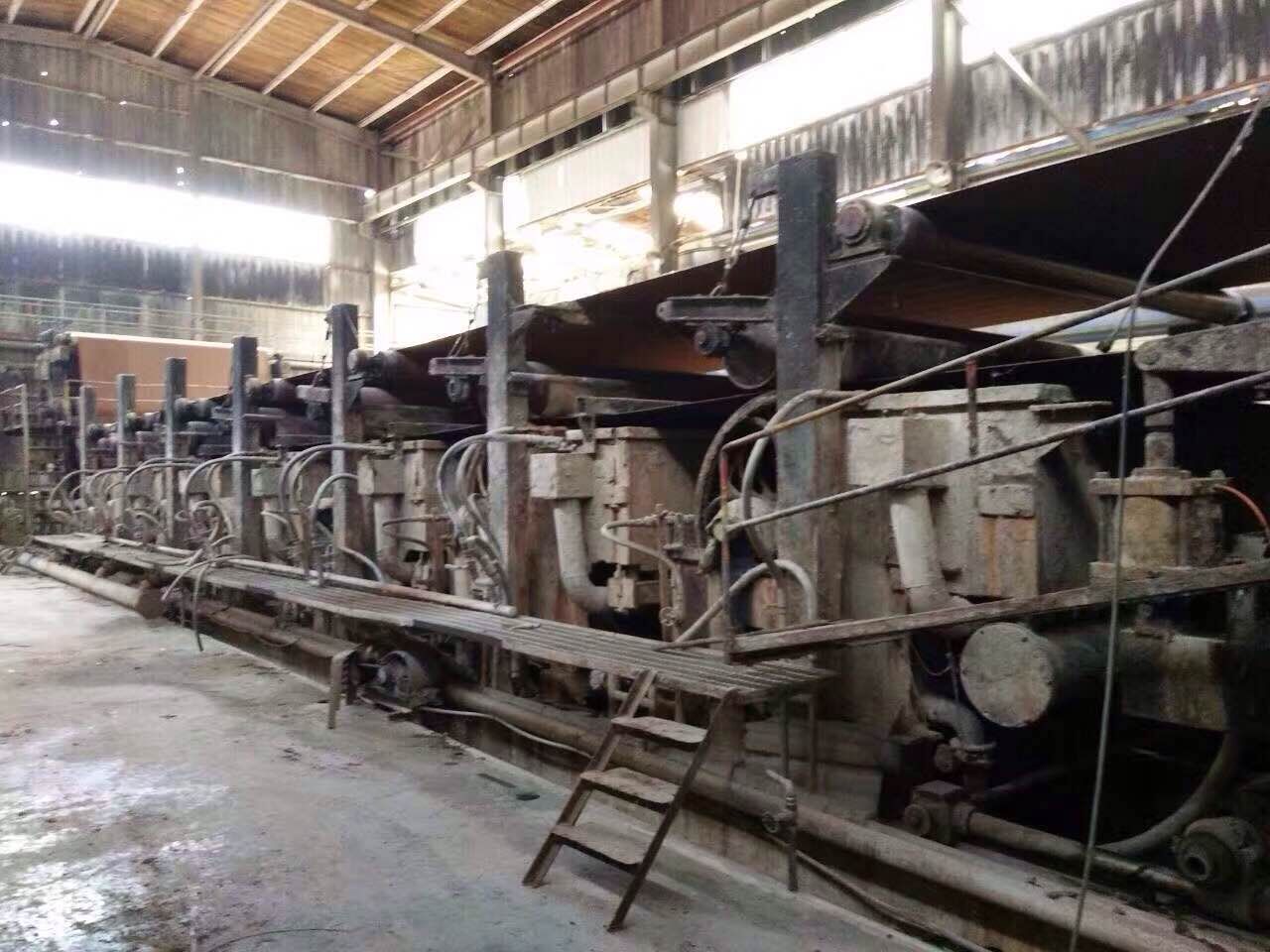

④Dry Section:Dryer Cylinder-1500mm*3700mm

                       Gear Box Transmission

                       Spread Pattern:6 dryer cylinders+1 dryer cylinder (diameter 3000mm)

                      +6 dryer cylinders+sizing machine +8 dryer cylinders

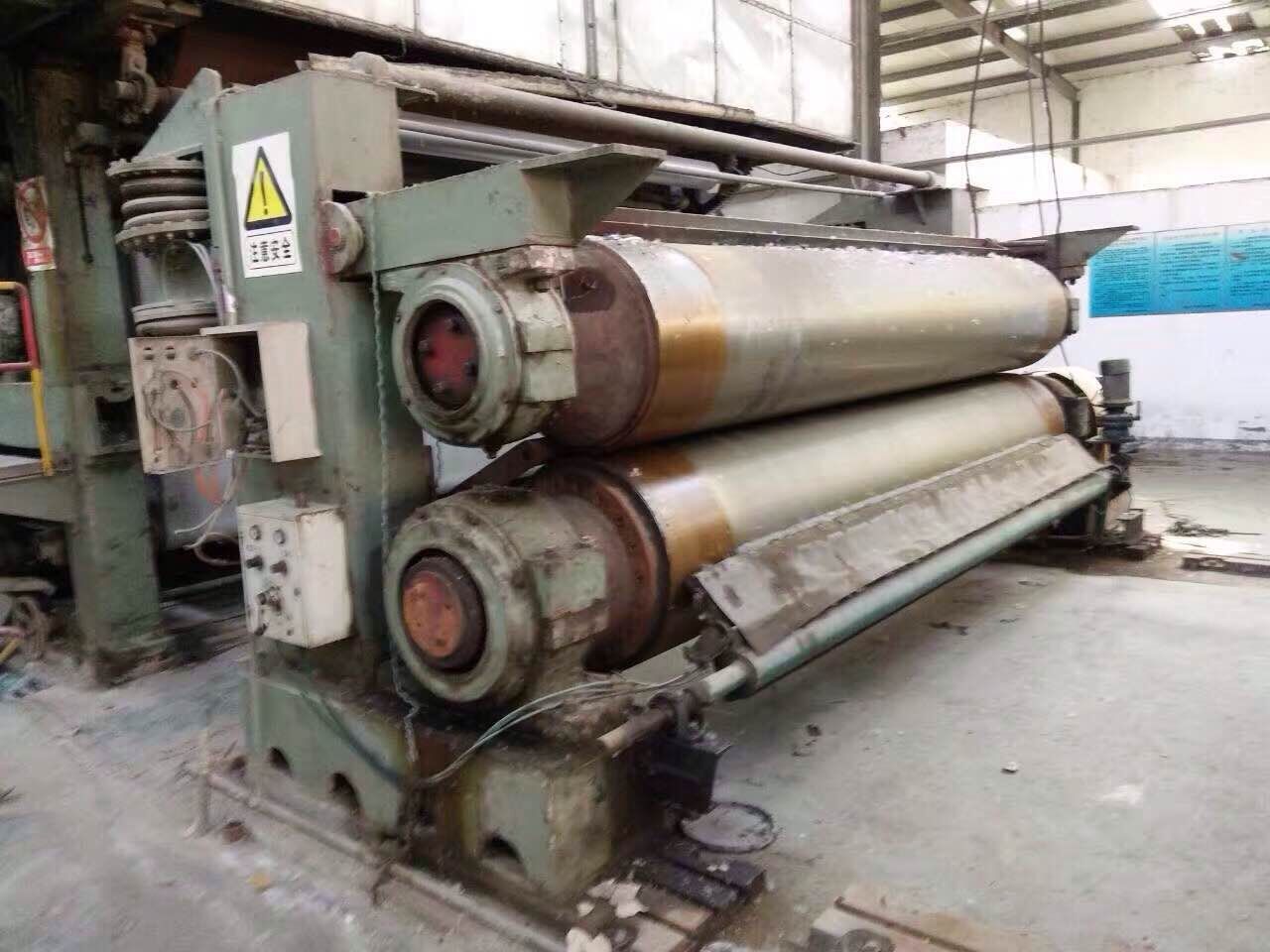

⑤Auxiliary Machine:calender-750mm*700mm

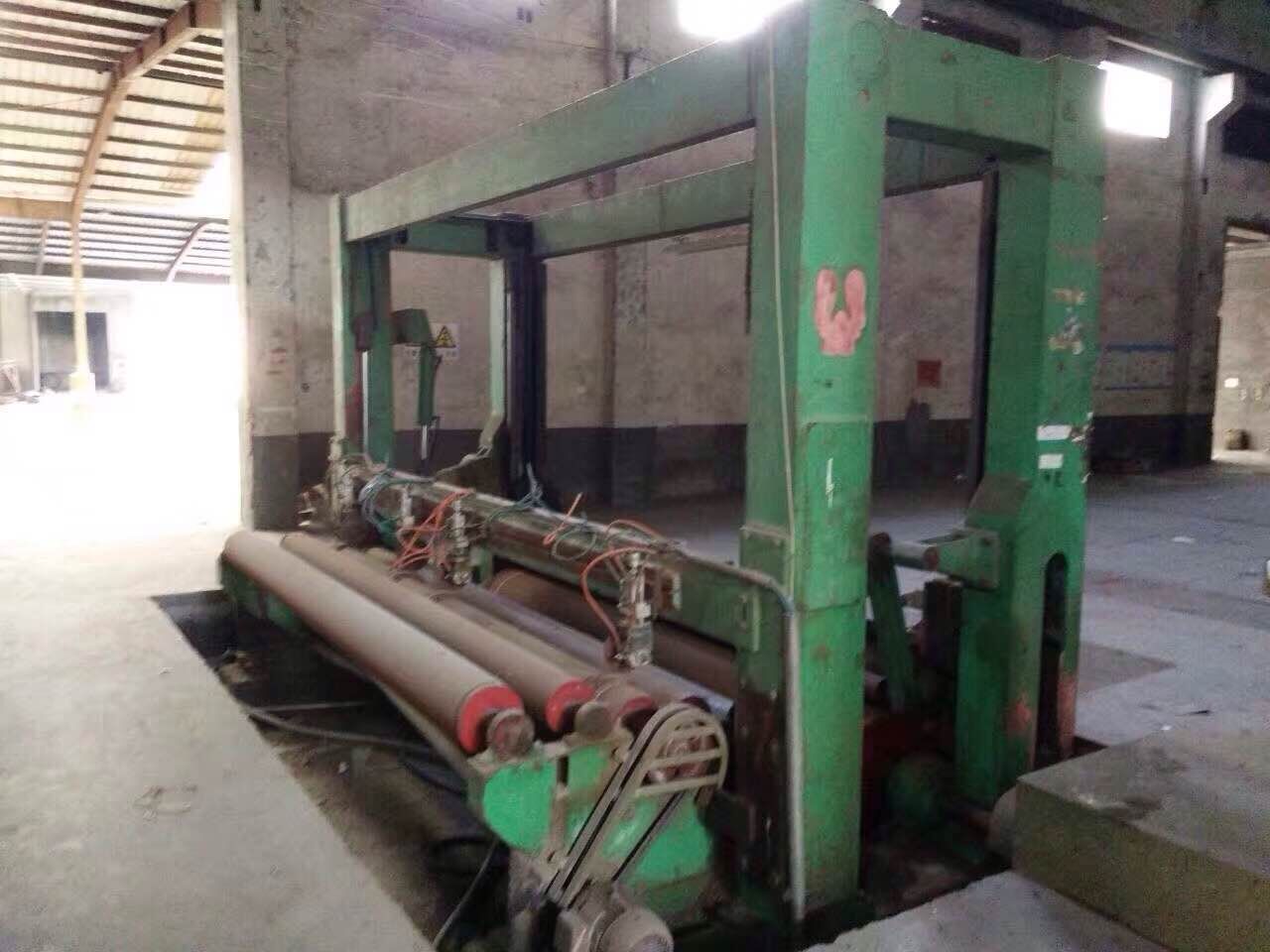

                                 1 set pope reel

⑥Remarks: right hand machine ,including motor and frequency changer
